NetGain HyPer 9HV Motor HyPer-Drive X144 Controller Kit 144 Volt

$9,795.00

NetGain HyPer 9HV IS Motor HyPer-Drive X144 Controller Kit 144 Volt



Please get in touch for shipping details.

We will get back to you within 2 business days.

support@tractionev.com



Category: Motors Tags: AC Motor, Brushless Motor, HV, HyPer 9, HyPer 9HV, HyPer9, NetGain HyPer 9, Permanent Magnet Motor, Synchronous Reluctance Motor
  • Description

Description

All new from NetGain Motors!

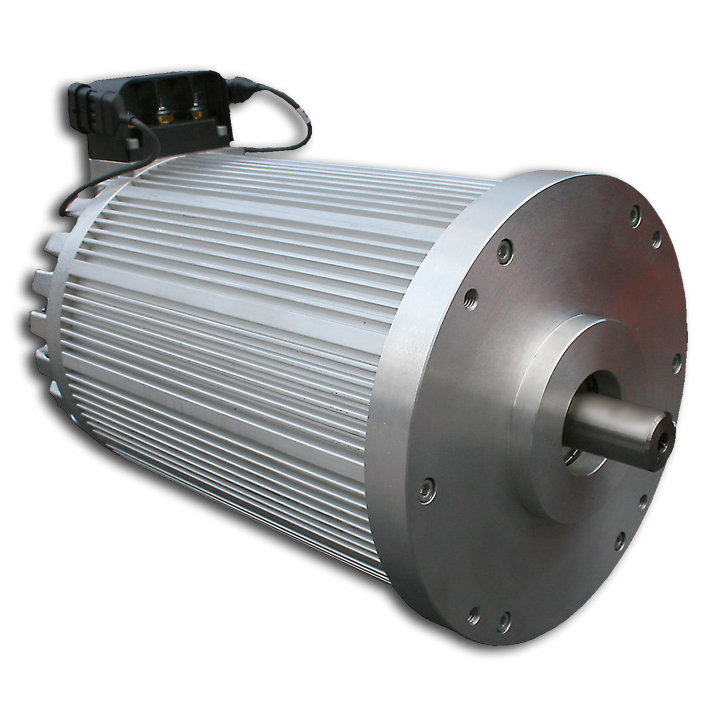

The HyPer 9HV IS Non-Rare-Earth Permanent Magnet Synchronous Reluctance Motor produces 220 Nm torque and the HyPer-Drive X144 controller outputs 500 amps and produces 100kW! Voltage input range is 90V to 180V. This motor system is up to 95% efficient! The X144 also has regenerative braking capability. A great motor for small to medium sized vehicles.

This kit includes:

  • NetGain HyPer 9HV Motor
  • HyPer-Drive X144 144 Volt Speed Controller
  • Traction EV Chill Plate for Speed Controller
  • 35 Pin Ampseal Connector and Wire Harness
  • Gigavac GV200-PA Contactor
  • 12 Volt HV Relay

Optional Item:

  • Compact Display or Mini Display

Motor Face: B-Face
Motor Diameter: 229 mm / 9 Inches
Motor Case Length: 350 mm / 13.75 Inches
Motor Shaft Length: 50.8 mm / 2 Inches
Motor Type: AC Permanent Magnet Synchronous Reluctance
Brushes: No
Interpoles: No
Weight: 54.5 Kg / 120 lbs
Min Voltage Input: 90 v
Max Voltage Input: 180 v
Terminal Stud Size: M8 / (5/16 Inch)
Integrated Sensors: Encoder and Temperature
Rated Torque: 220 Nm / 162 Lb Ft
Rated Power: 100 kW / 130 HP
Continuous RPM: 3,600
Max RPM: 8,000
RPM Sensor: Yes
Drive End Shaft: 1 1/8 Inch With 1/4 Inch Keyway
Max Efficiency: 94%
Thermal Cooling: External Heatsink
Max Temperature: 150 Degrees Celsius / 302 Degrees Fahrenheit
Matching Controller Included In Price: Yes
24 Months Warranty

Link: NetGain HyPer_System_User_Manual_RevB_1

Link To HyPer 9HV IS CAD Drawings

Link: NetGain HyPer-Drive X1 3D CAD File
