Description

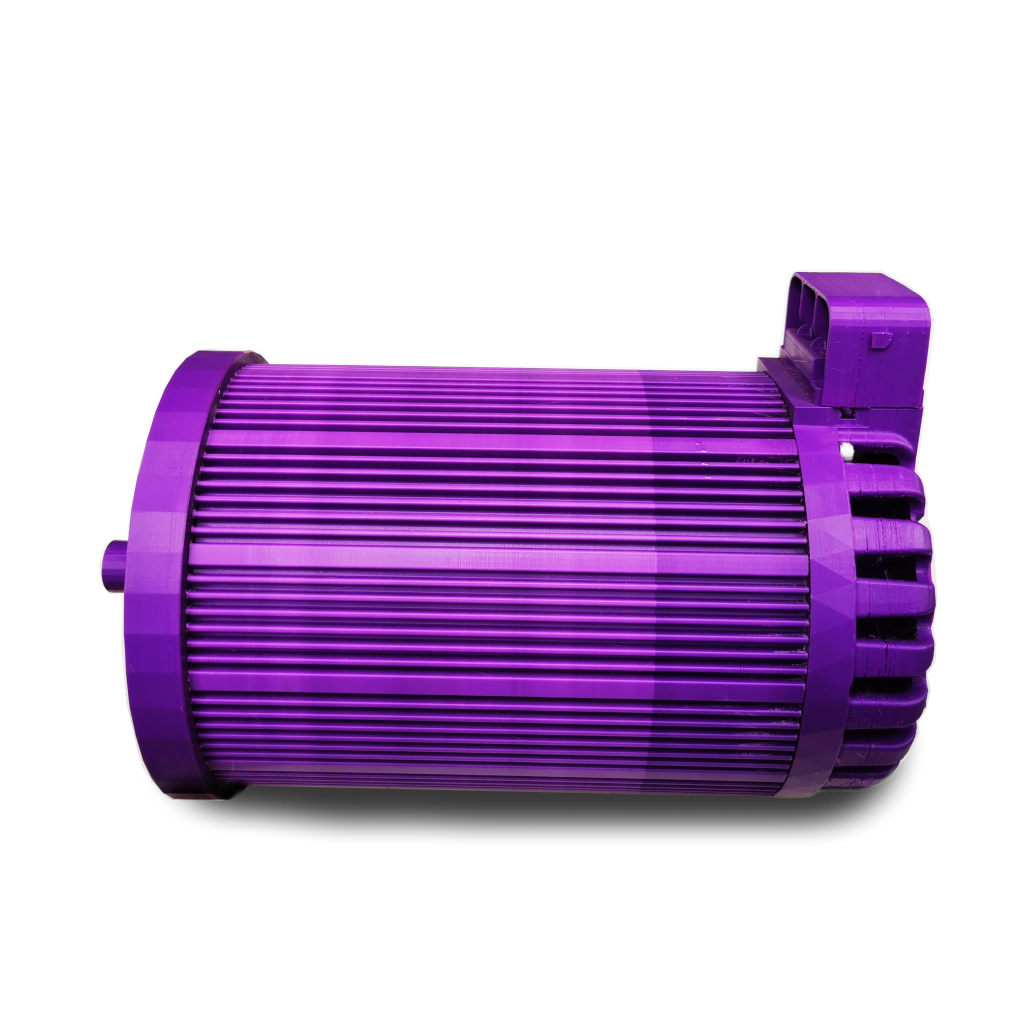

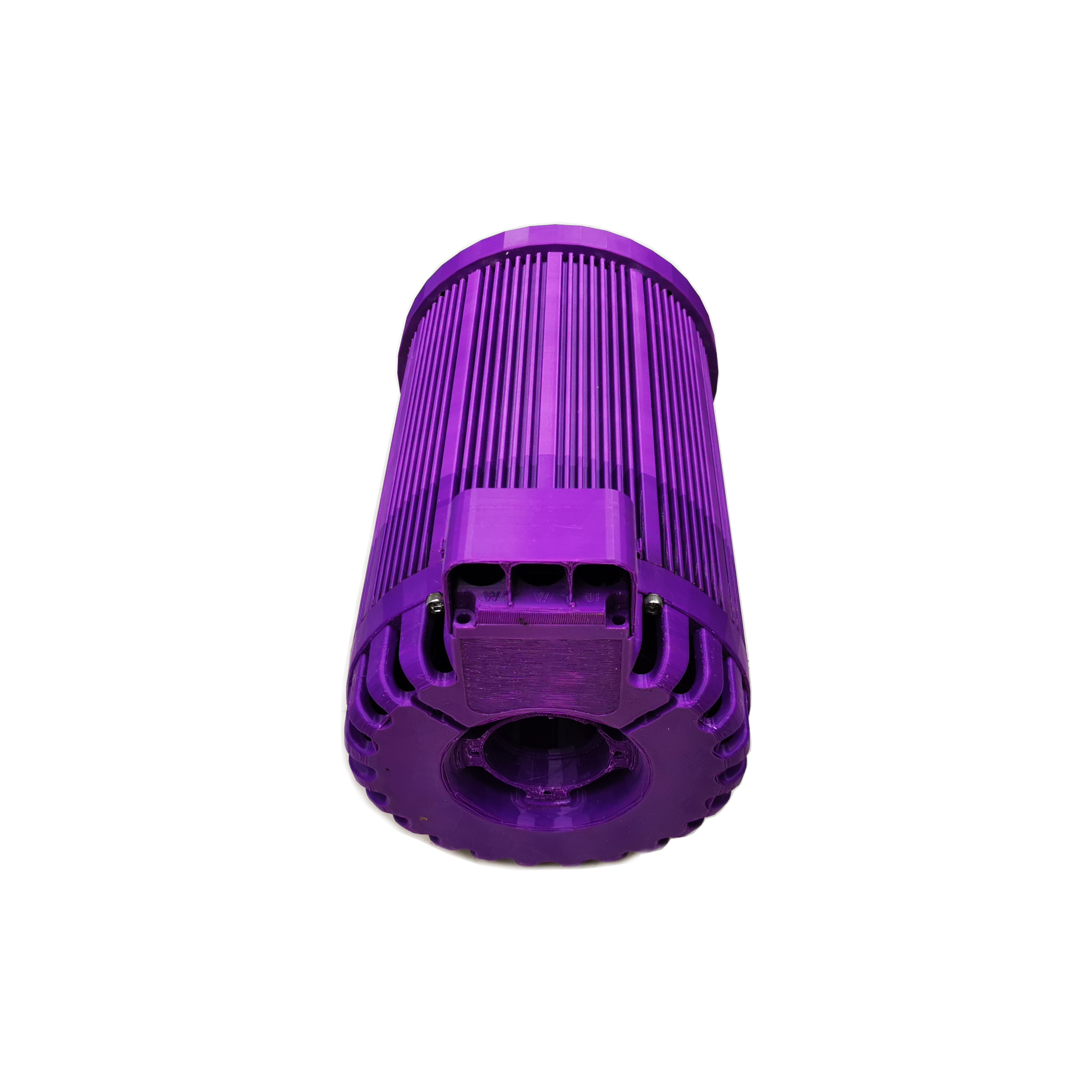

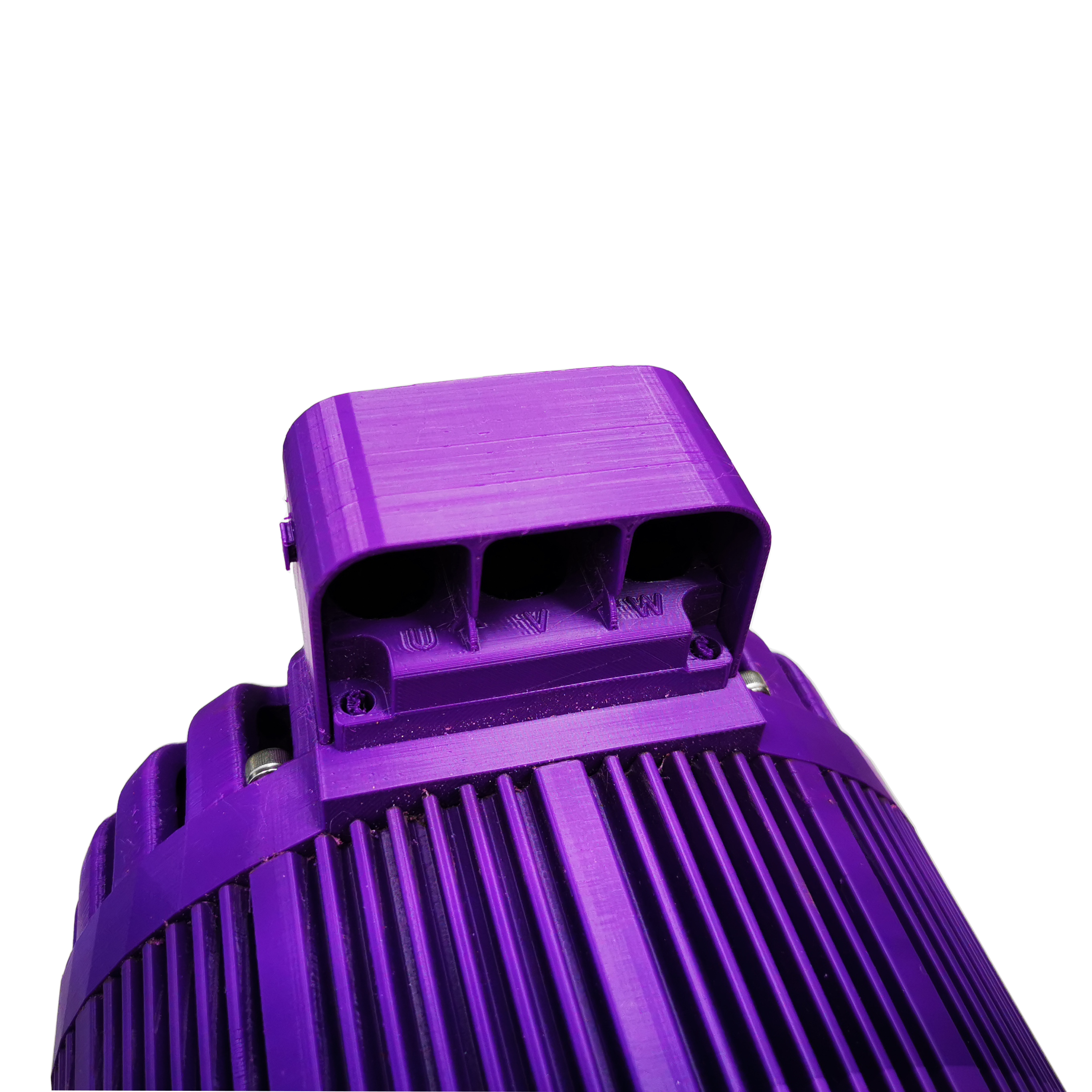

3D Lightweight NetGain HyPer 9 Model for mock up and design in your electric vehicle conversion. These 3D printed models are super light at just 1450 grams and are produced to high tolerances to give you an accurate tool to work from.

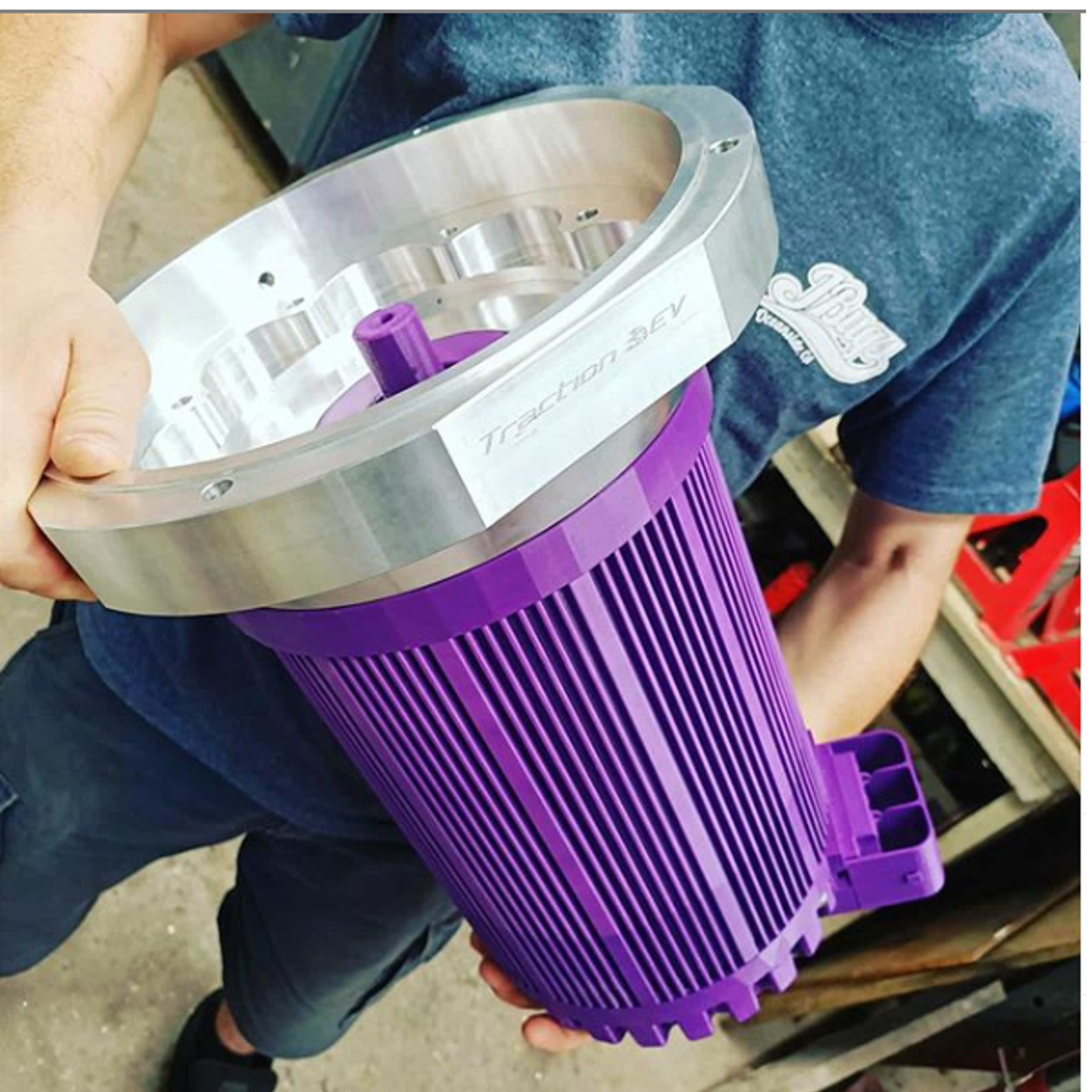

The threaded mounting holes and end bell are just like the real HyPer 9 so you can mount these to an EV motor adapter plate and fit this up to your vehicle. You will know exactly what space you have to work with inside your engine bay and you can design your components layout perfectly to give you the best looking finish to your conversion.
Motor Face: B-Face
Motor Diameter: 229 mm / 9 Inches
Motor Case Length: 350 mm / 13.75 Inches
Motor Shaft Length: 50.8 mm / 2 Inches
Weight: 1450 grams / 3.2 lbs
Link: NetGain HyPer 9 IS 120 Volt Product Page
Link: NetGain HyPer 9HV IS 144 Volt Product Page
You can also download the 3D CAD files and drawings from the links below.
Link: NetGain HyPer 9 Motor 3D CAD File
Link: NetGain HyPer Drive AC-X1 Controller 3D CAD File
Link: NetGain HyPer 9 Installation and Operation Manual
